    Gigabyte GA-990FXA-UD5 AMD 990FX AM3+ Motherboard
    1. Supports newest AMD AM3+ FX/AM3 Phenom II series processors
    2. Advanced 8+2 phase CPU VRM power design for AMD high-TDP CPU support
    3. 5 PCI-E 2.0 interfaces for 3way AMD CrossFireX and SLI multi-graphics support
    4. AMD SB950 provides 6 native SATA3 ports with superfast 6Gbps link speed and RAID 0, 1, 5, 10 support
    5. Supports USB 3.0 with superfast transfer rates of up to 5 Gbps
    6. GIGABYTE 3x USB Power with On/Off Charge USB ports




    ///


    Detailed Description
    (Manufacturer # GA-990FXA-UD5 )

    CPUAM3+ Socket:
    1. Support for AMD AM3+ FX processors
    2. Support for AMD AM3 Phenom™ II processors / AMD Athlon™ II processors
    (Please refer "CPU Support List" for more information.) Hyper Transport Bus
    1. 5200 MT/s
    Chipset
    1. North Bridge: AMD 990FX
    2. South Bridge: AMD SB950
    Memory
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2)
    (Please refer "Memory Support List" for more information.) Audio
    1. Realtek ALC889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby Home Theater
    5. Support for S/PDIF Out
    LAN
    1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
    Expansion Slots
    1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) (Note 3)
    2. 1 x PCI Express x16 slots, running at x8 (PCIEX8) (Note 4)
    3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
    4. 1 x PCI Express x1 slot (All PCI Express slots conform to the PCI Express 2.0 standard.)
    5. 1 x PCI slot
    Multi-Graphics Technology
    1. Support for 2-Way/3-Way AMD CrossFireX™ and NVIDIA SLI™ technology
    Storage InterfaceSouth Bridge:
    1. 6 x SATA 6Gb/s connectors (SATA3_0~SATA3_5) supporting up to 6 SATA 6Gb/s devices
    2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD
    2 x Marvell 88SE9172 chips:
    1. 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
    2. 2 x eSATA 6Gb/s connectors on the back panel supporting up to 2 SATA 6Gb/s devices
    3. Support for RAID 0 and RAID 1
    USBSouth Bridge:
    1. Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)
    2 x Etron EJ168 chips:
    1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    IEEE 1394VIA VT6308 chip:
    1. Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)
    Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 8 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 2 x system fan headers
    6. 1 x power fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 3 x USB 2.0/1.1 headers
    11. 1 x USB 3.0/2.0 header
    12. 1 x IEEE 1394a header
    13. 1 x serial port header
    14. 1 x clearing CMOS jumper
    15. 1 x Trusted Platform Module (TPM) header
    Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x optical S/PDIF Out connector
    3. 1 x IEEE 1394 port
    4. 8 x USB 2.0/1.1 ports
    5. 2 x USB 3.0/2.0 ports
    6. 2 x eSATA 6Gb/s connector
    7. 1 x RJ-45 port
    8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
    I/O Controller
    1. ITE IT8720 chip
    H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control (Note 5)
    BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 6)
    8. Support for Easy Energy Saver
    9. Support for Smart Recovery
    10. Support for Auto Green
    11. Support for ON/OFF Charge
    12. Support for Cloud OC
    13. Support for 3TB+ Unlock
    14. Support for Q-Share
    Bundle Software
    1. Norton Internet Security (OEM version)
    Operating System
    1. Support for Microsoft Windows 7/ Vista/ XP
    Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm






    Technical Specifications   [return to top]
     Specification Value
    Processor Supported: AMD
    Socket Type: AMD AM3 plus
    CPU Type: Phenom II x6 x125w /AM3
      Phenom II x6 95w /AM3
      Phenom II x4 125w /AM3
      Phenom II x4 95w /AM3
      Phenom II x2 80w /AM3
      Athlon II x4 95w /AM3
      Athlon II x3 95w /AM3
      Athlon II x2 65w /AM3
      Sempron 45w /AM3
      FX Eight-Core 125w /AM3 plus
      FX Six-Core 95w /AM3 plus
      FX Four-Core 95w /AM3 plus
    North Bridge Chipset: AMD 990FX
    South Bridge Chipset: AMD 950
    Number of Memory Slots: 4 DIMM Slot
    Memory Type: DDR3
    Form Factor: ATX
    Onboard Video Chipset: None
    Video Output: None
    Multi-GPU Solution: SLI
      CrossFire
    Memory Channel: Dual
    PCI Express 2 x16 Slots: 5
    PCI Express 3 x16 Slots: 0
    PCI Slots: 1
    PCIe x1 Slots: 1
    PCIe x4 Slots: 0
    PATA Support: None
    SATA 1 5 Gb Support: 0
    SATA 3Gb Support: 0
    SATA 6GB Support: 8
    SATA RAID: 0
      1
    USB 3.1 Ports: 0
    USB 3 Ports: 2
    USB 2 Ports: 8
    eSATA Ports: 2
    Firewire 1394a Ports: 2
    Thunderbolt: No
    LAN Ports: 10/100/1000
    On Board Power Connectors: 24 Pin ATX
      1x 8 Pin ATX 12V
    CPU Fan Header: 1x 4 Pin PWM
    3 Pin System Fan: 1 Header
    4 Pin PWM System Fans: 1 Header




    ///

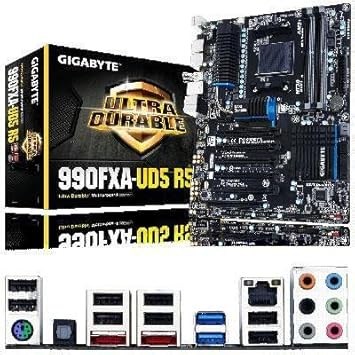

    Gigabyte Technology 990FX Cihpset ATX Motherboard
  • To view this video download Flash Player
    • Click to open expanded view



    Gigabyte Technology 990FX Cihpset ATX Motherboard

    List Price:$280.93
    Price:$174.89
